Listed specification
Reproduced from the manufacturer's published listing for model DG 02 (the 125cc motocross pitbike listing). The brand name field of that listing reads JASSCOL; it is reproduced exactly as listed.
| Field | Listed value |
|---|---|
| Model NO. | DG 02 |
| Brand name (as listed) | JASSCOL |
| Engine | 125cc, single cylinder, 4-stroke, air cooled |
| Gears | 4-speed manual (N-1-2-3-4), hand clutch |
| Bore x stroke | 52.4 mm x 55.5 mm |
| Compression ratio | 9.3:1 |
| Max power | 5.6 kW at 8000 rpm (as listed) |
| Displacement (description) | 119.6 mL |
| Displacement class (basic information) | 100–200 cc |
| Spark plug | A7TC |
| Carburettor | JKPZ26 |
| Ignition | CDI |
| Starting system | Kick starter |
| Transmission / final drive | Chain 428#, front 14T / rear 41T |
| Suspension | Inverted shock absorption (front); hydraulic damping 290 mm (rear) |
| Brakes | Disc brake front and rear (front hand brake, rear foot brake) |
| Tires | Front 70/100-17; Rear 90/100-14 |
| Fuel tank capacity | 4.5 L |
| Overall dimensions (L x W x H) | 1790 x 760 x 1050 mm |
| Wheelbase | 1200 mm |
| Seat height | 810 mm |
| Ground clearance | 320 mm |
| Maximum load | 75 kg |
| Dry weight | 60 kg |
| Packing size | 1540 x 387 x 720 mm |
| Quantity per 40 ft HQ container | 144 pcs |
| Colors | Black, Blue, Green, Orange |
| Listed price band | US$498.00–550.00 / piece |
| Minimum order (product listing) | 1 piece |
A note on the top-speed figure
The DG 02's listing carries two different maximum-speed values — its basic information states "over 80 km/h" while its description states 100 km/h — so this page does not print a single top speed. Ask for the confirmed, governed figure for your market to be stated in the quotation.
About this model

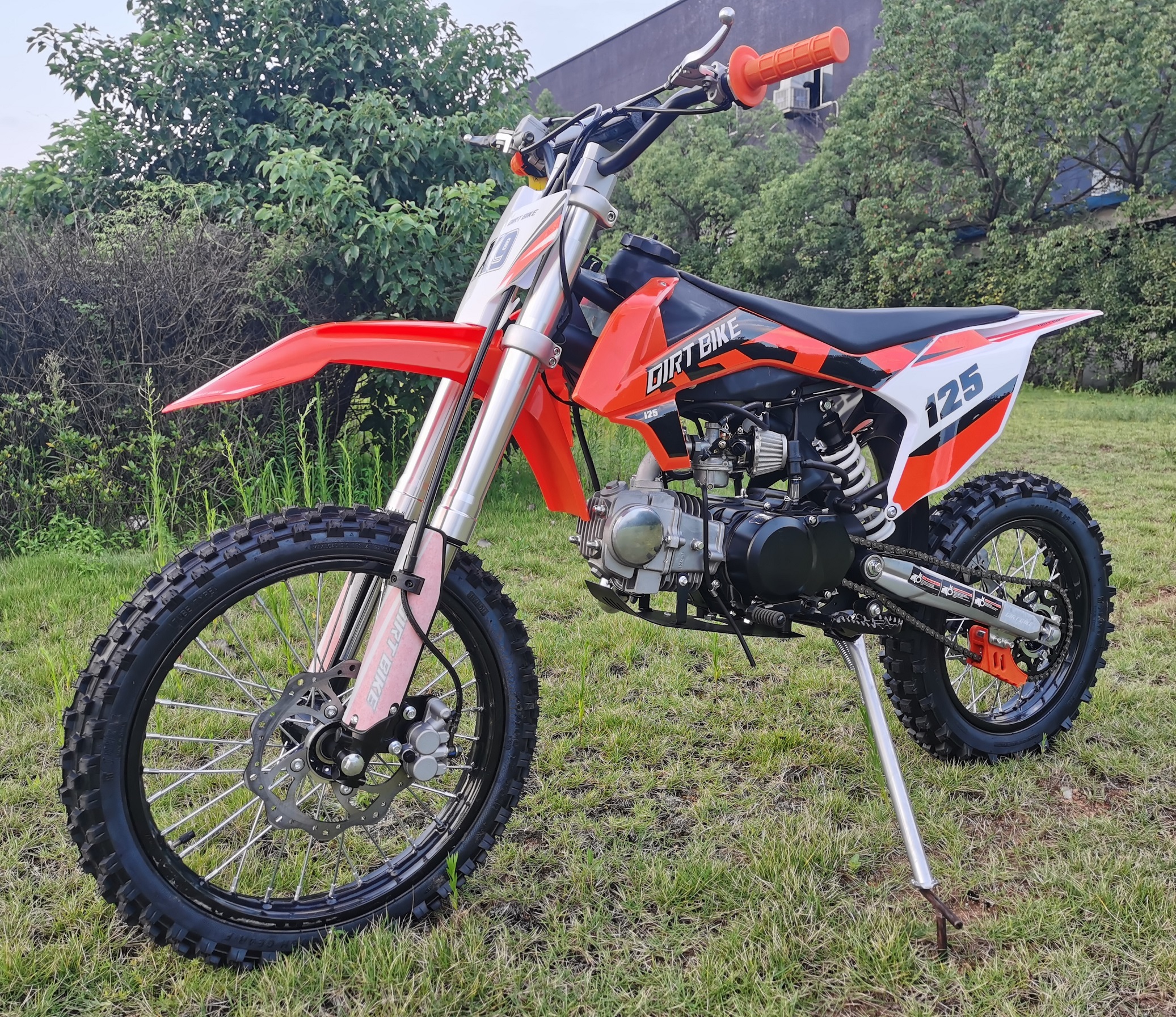

The DG 02 name runs across the dirt bike family's titles in motocross, pit bike, pocket bike and racing forms (see pit bikes and pocket dirt bikes); the data on this page belongs to the one deep-captured DG 02 listing. Its published data describes a light machine — 60 kg dry weight, an 810 mm seat height and a 4.5-litre tank — built around a simple air-cooled single with a kick starter and a four-speed manual box. Container economics are part of its listing: 144 pieces per 40 ft HQ container as published.
Ordering
Minimum order has two published layers: this model's listing states 1 piece, while our product pages' general FAQ states a range of 5–15 pieces per model; the confirmed minimum is the figure in your quotation. The FAQ gives production time of 35–45 days and payment by T/T, L/C or Western Union. Send quantity and market through the contact page, referencing model DG 02.
Formats, packing and importer notes
The dirt bike family lists twenty entries — motocross, pit bike, pocket bike, racing and monkey bike listings among them — and the DG 02 is the entry documented in full. The published packing data belongs to that documented listing: a packing size of 1540 x 387 x 720 mm and a listed quantity of 144 pieces per 40 ft HQ container make the model straightforward to plan freight around, and the dry weight of 60 kg keeps per-unit handling simple. The 4.5-litre tank, kick starter and carburetted single-cylinder engine describe the documented machine — a deliberately simple model to service in markets where workshop infrastructure is basic; the listed spark plug (A7TC), carburettor (JKPZ26) and chain sizes (428#, 14T/41T) are the kind of detail that lets a buyer's workshop confirm parts compatibility before the order, not after it. Colour choice — black, blue, green or orange as listed — is confirmed with the order.
